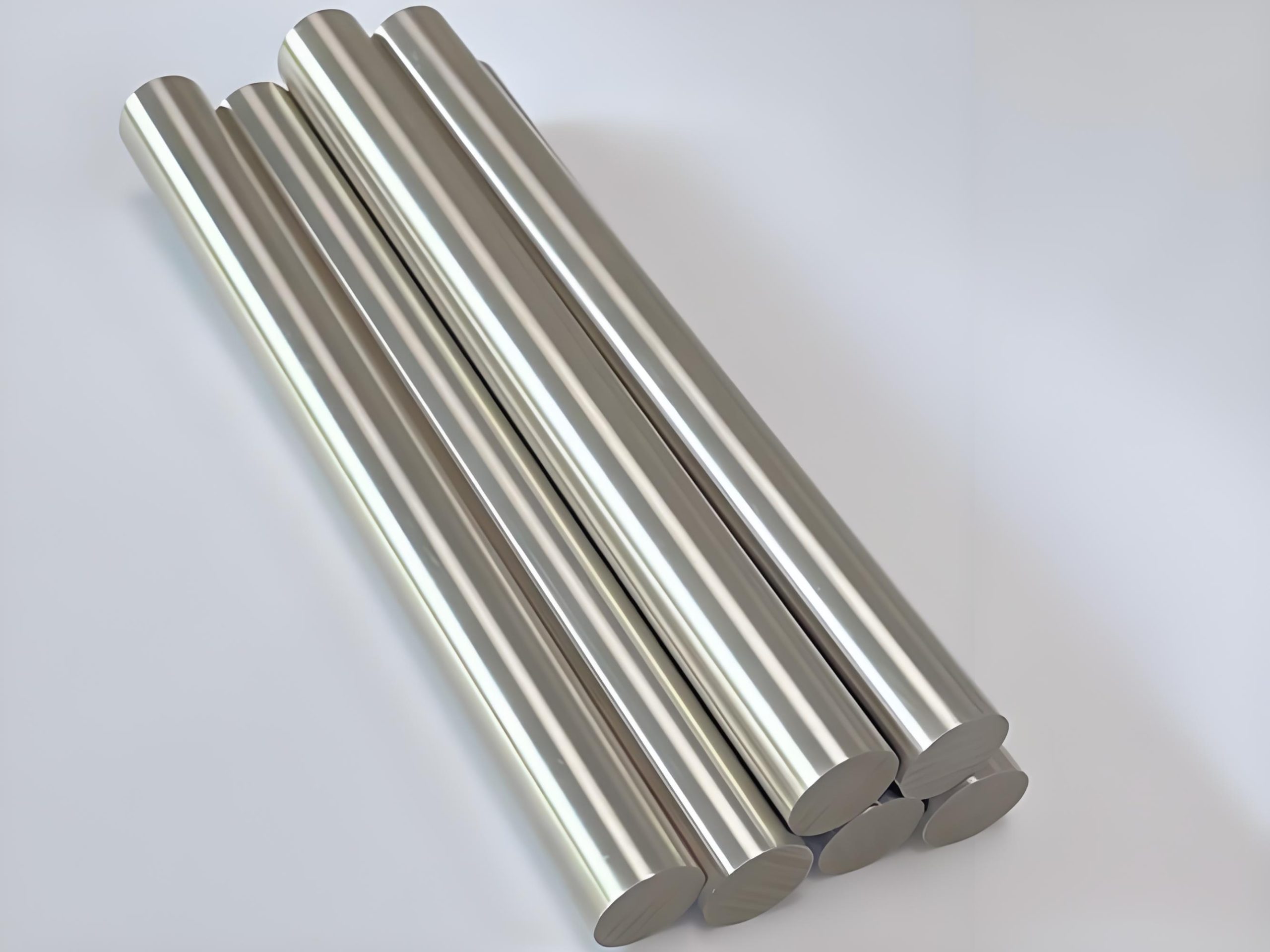

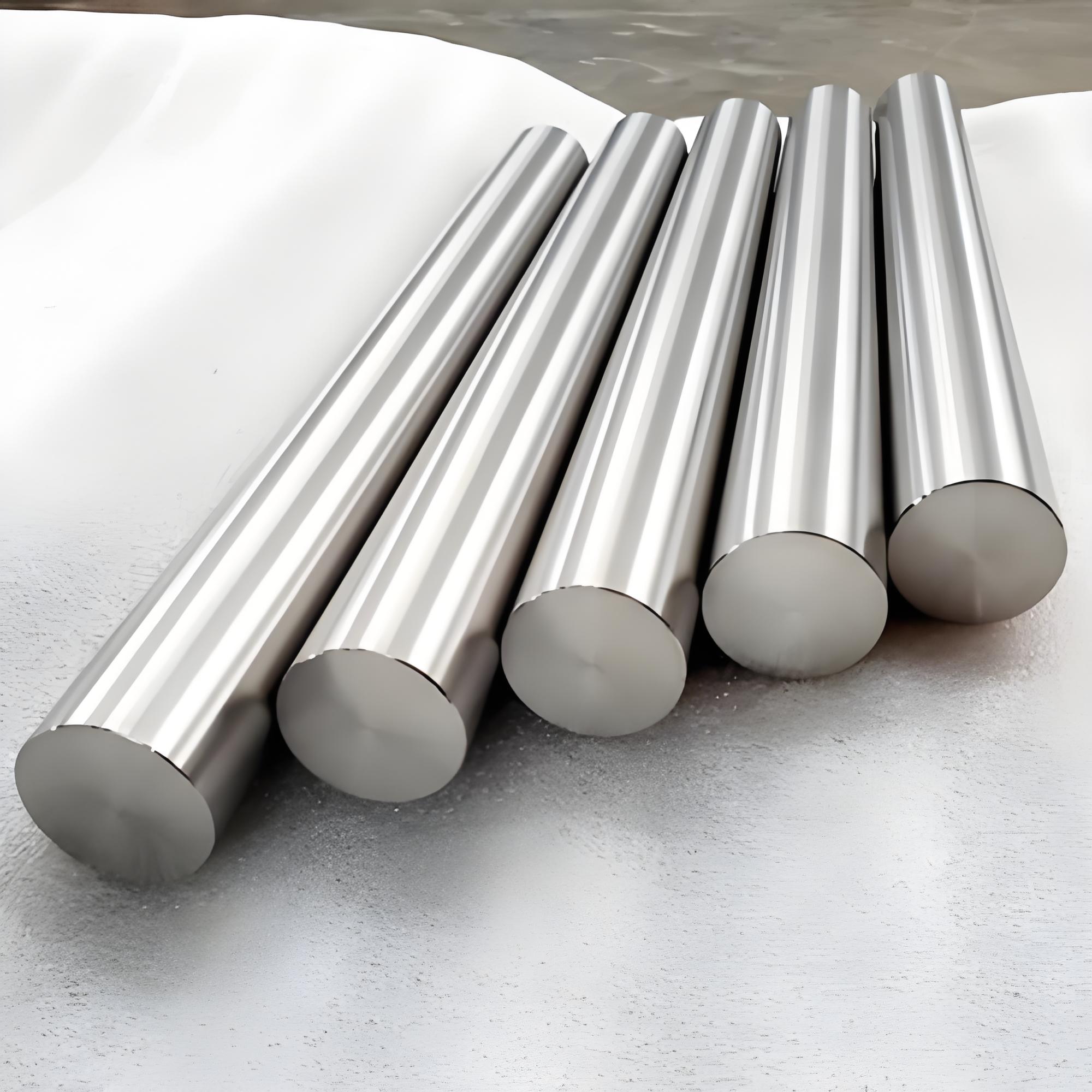

Nickel 201 round bar is a low-carbon commercially pure nickel bar, commonly identified as UNS N02201. Its chemical composition is based on very high nickel content, usually nickel plus cobalt at 99.0% minimum, with strictly controlled carbon, iron, manganese, silicon, copper, sulfur, and other residual elements. The most important feature of Nickel 201 chemical composition is its very low carbon content, normally limited to 0.02% maximum. This makes Nickel 201 round bar more suitable than Nickel 200 for elevated-temperature service, especially above about 315°C, where lower carbon content helps reduce graphitization and carbon-related embrittlement risk. For buyers, engineers, and machining factories, checking Nickel 201 round bar chemical composition is essential before using it in caustic alkali equipment, chemical processing parts, electrical components, high-temperature pure nickel parts, rods, fasteners, and corrosion-resistant machined components.
Nickel 201 round bar belongs to the commercially pure nickel family. It is the low-carbon version of Nickel 200 and is mainly used when pure nickel corrosion resistance, ductility, conductivity, and better high-temperature carbon control are required. Its chemical composition is simple compared with complex nickel alloys such as Inconel 625, Monel 400, or Hastelloy C-276. However, this simple composition is exactly what gives Nickel 201 its special value in many industrial applications.
The main element in Nickel 201 round bar is nickel. Nickel plus cobalt is usually specified at 99.0% minimum. Other elements are limited to small amounts. Carbon is the key controlled element, and its low maximum content is the main reason Nickel 201 is selected instead of Nickel 200 for elevated-temperature service.
| Item | Nickel 201 Round Bar Information |
|---|---|
| Common Name | Nickel 201 / Alloy 201 |
| UNS Designation | UNS N02201 |
| Material Type | Low-carbon commercially pure nickel |
| Main Element | Nickel |
| Key Composition Feature | Very low carbon content |
| Main Selection Reason | Pure nickel performance with better high-temperature carbon control |
Nickel 201 round bar may look similar to Nickel 200 round bar or other nickel alloy bars by appearance. The correct grade cannot be confirmed by color, surface, or weight alone. Chemical composition is the most direct way to verify whether the supplied material is truly Nickel 201 / UNS N02201. This is especially important for high-temperature applications, because using a higher-carbon pure nickel bar where Nickel 201 is required may create performance risk during long-term service.
UNS N02201 is the unified designation for Nickel 201. When a purchase order, drawing, or material specification asks for Nickel 201 round bar, it should normally correspond to UNS N02201 chemical composition requirements. The UNS number helps avoid confusion between Nickel 201, Nickel 200, Nickel 270, Monel 400, and other nickel-based materials.
For industrial purchasing, the UNS designation should appear clearly on the quotation, material test certificate, product label, packing list, and related inspection documents. If the document only says “nickel round bar” without UNS N02201, buyers should request clarification before accepting the material.
| Designation | Grade Name | Main Composition Meaning | Practical Use |
|---|---|---|---|
| UNS N02201 | Nickel 201 | Low-carbon commercially pure nickel | Used where pure nickel properties and low carbon content are required |
Nickel 201 is often ordered for high-temperature or low-carbon service. If a supplier provides Nickel 200 instead of Nickel 201, the material may still contain high nickel content, but the carbon limit will not be the same. This difference can matter in service above about 315°C. Therefore, UNS N02201 should be confirmed before production, shipment, and final acceptance.
Nickel is the main element in Nickel 201 round bar. The nickel plus cobalt content is typically specified as 99.0% minimum. This very high nickel content is the foundation of Nickel 201’s corrosion resistance, ductility, thermal conductivity, electrical conductivity, and pure nickel behavior.
Nickel provides excellent resistance to many reducing and alkaline environments. It also gives Nickel 201 good ductility and toughness, making the bar suitable for machining, forming, welding, and fabrication when proper procedures are used. Because Nickel 201 contains very high nickel content, it is often used in applications where stainless steel or lower nickel alloys cannot provide the same pure nickel performance.
The high nickel content helps Nickel 201 round bar resist caustic alkalis, neutral salts, dry fluorine, and many reducing conditions. It is especially useful in caustic soda and alkaline processing equipment. However, Nickel 201 should not be treated as a universal corrosion-resistant alloy. It does not contain chromium or molybdenum as major alloying elements, so it is not usually selected for strong oxidizing acids or severe chloride pitting environments.
Because Nickel 201 contains a very high percentage of nickel, its price is strongly affected by the nickel raw material market. Compared with stainless steel bar, Nickel 201 round bar is usually much more expensive. Buyers choose Nickel 201 not because it is cheap, but because its pure nickel composition provides specific corrosion, conductivity, and high-temperature advantages.
The low carbon content is the most important chemical composition feature of Nickel 201 round bar. Nickel 201 normally limits carbon to 0.02% maximum, while Nickel 200 allows a higher carbon level. This low carbon content is the main reason Nickel 201 is preferred for elevated-temperature pure nickel service.
Carbon may seem like a small element in a chemical composition table, but it can have a large effect on high-temperature behavior. In commercially pure nickel, higher carbon content may increase the risk of graphitization and embrittlement when the material is exposed to elevated temperature for long periods. Nickel 201 reduces this risk by using a lower carbon limit.
Nickel 201 is generally preferred when the service temperature is above about 315°C. This does not mean Nickel 200 fails immediately at this temperature, but it means Nickel 201 offers a better safety margin where carbon-related high-temperature behavior is a concern. For caustic evaporators, heated alkali systems, thermal processing parts, and high-temperature pure nickel components, this low-carbon design is important.
| Grade | Carbon Limit | Practical Meaning |
|---|---|---|
| Nickel 200 | 0.15% max | Suitable for many general pure nickel applications |
| Nickel 201 | 0.02% max | Preferred for elevated-temperature service due to low carbon content |
Nickel 201 uses lower carbon than Nickel 200 because it is designed for better high-temperature stability. Nickel 200 is a commercially pure nickel grade suitable for many normal-temperature and moderate-temperature applications. Nickel 201 keeps the same general pure nickel character but lowers carbon to improve performance when the alloy is exposed to elevated temperature.
Nickel 200 is still a useful and widely used material. It has excellent corrosion resistance in many environments, good ductility, and good conductivity. For many room-temperature chemical, electrical, battery, food processing, and industrial applications, Nickel 200 can be fully suitable if the specification allows it.
Nickel 201 becomes the better choice when the application involves prolonged exposure above about 315°C. The lower carbon content helps reduce graphitization risk and helps maintain better reliability in elevated-temperature pure nickel service. This is especially important in high-temperature caustic alkali environments, where both corrosion resistance and carbon control matter.
If the drawing, purchase order, or engineering specification calls for UNS N02201, buyers should not substitute Nickel 200 without approval. Even though both grades are commercially pure nickel, the carbon limit difference is a real technical difference, not just a naming difference.
Besides nickel and carbon, Nickel 201 round bar also contains controlled limits for iron, manganese, silicon, copper, sulfur, and other residual elements. These elements are not the main performance source of Nickel 201, but they must remain within specification to maintain consistent quality.
Iron is controlled in Nickel 201. Excessive iron may affect alloy purity and corrosion behavior. In a qualified Nickel 201 round bar, iron should remain within the standard maximum limit shown on the MTC.
Manganese is usually controlled at a low maximum level. It may help metallurgical processing, but it should not exceed the specified range. Controlled manganese content helps maintain stable quality and predictable processing performance.
Silicon may be present as a residual or deoxidation-related element. In Nickel 201, silicon is limited because excessive silicon may influence processing and material behavior. Buyers should check the silicon value when reviewing chemical composition.
Copper is not a major alloying element in Nickel 201. This is different from Monel 400, which contains high copper. In Nickel 201, copper is limited as a residual element. If copper content is too high, the material may no longer meet the expected pure nickel composition requirements.
Sulfur is kept very low because it can negatively affect hot workability and material quality. Low sulfur is important for bar production, forging, rolling, welding, and surface quality. For critical applications, sulfur should be checked carefully in the MTC.
| Element | Why It Is Controlled | Possible Concern if Too High |
|---|---|---|
| Iron | Maintains purity and alloy balance | May affect corrosion behavior and composition compliance |
| Manganese | Supports metallurgical control | May affect material consistency if uncontrolled |
| Silicon | Controlled residual and deoxidation-related element | May influence processing behavior |
| Copper | Limited residual element | High copper may indicate composition mismatch |
| Sulfur | Kept low for hot workability and quality | May affect hot working, welding, and surface quality |
The following table shows a commonly used chemical composition reference for Nickel 201 round bar. Actual acceptance should always follow the required standard in the purchase order, such as ASTM B160, ASME SB-160, or a project-specific specification.
| Element | Typical Composition Limit | Function or Control Reason |
|---|---|---|
| Nickel + Cobalt | 99.0% min | Main base element for pure nickel performance |
| Carbon | 0.02% max | Low carbon content for improved elevated-temperature stability |
| Copper | 0.25% max | Controlled residual element |
| Iron | 0.40% max | Controlled residual element |
| Manganese | 0.35% max | Controlled for metallurgical quality |
| Silicon | 0.35% max | Controlled residual element |
| Sulfur | 0.01% max | Kept low for processing quality |
The most important values to check are nickel plus cobalt and carbon. Nickel plus cobalt should meet the minimum requirement, while carbon should not exceed the low-carbon maximum limit. The other elements should remain below their maximum limits. If one element is outside the required range, the material may not comply with Nickel 201 / UNS N02201 requirements.
The chemical composition of Nickel 201 round bar directly affects its high-temperature performance. The low carbon content is the key factor. By reducing carbon to a very low level, Nickel 201 becomes more suitable for elevated-temperature applications than Nickel 200.
In commercially pure nickel, higher carbon content may create graphitization concerns during long-term high-temperature exposure. Graphitization can reduce ductility and make the material more vulnerable to embrittlement. Nickel 201 reduces this risk by controlling carbon at a very low level.
Nickel 201 is commonly selected for pure nickel components used above about 315°C. It may be used for caustic evaporator parts, heated alkali equipment, thermal processing fixtures, furnace-related components, rods, fasteners, and high-temperature chemical processing parts.
Although Nickel 201 has better high-temperature carbon control than Nickel 200, it should not be confused with high-temperature nickel-chromium alloys such as Inconel 600 or Inconel 625. Nickel 201 does not contain high chromium for oxidation resistance. If the environment involves hot oxidizing gas, furnace atmosphere, sulfur, chlorides, or severe hot corrosion, another alloy may be more suitable.
| High-Temperature Factor | Nickel 201 Composition Advantage | Practical Meaning |
|---|---|---|
| Carbon Control | 0.02% max carbon | Reduces graphitization and embrittlement risk |
| Pure Nickel Base | 99.0% min nickel plus cobalt | Maintains pure nickel corrosion and conductivity behavior |
| Elevated-Temperature Use | Better than Nickel 200 in carbon-sensitive service | Preferred above about 315°C |
| Oxidation Resistance | No high chromium content | Not equal to nickel-chromium heat-resistant alloys |
Nickel 201 round bar has excellent corrosion resistance in many reducing and alkaline environments. Its high nickel content is the main reason for this performance. Nickel 201 is especially useful in caustic alkalis, neutral salts, dry fluorine, and selected reducing conditions.
The high nickel content gives Nickel 201 good resistance to many corrosive media where ordinary steels may fail. It performs particularly well in caustic alkali environments, which is one of the strongest application areas for commercially pure nickel materials.
The low carbon content of Nickel 201 is most important at elevated temperature. In room-temperature corrosion service, Nickel 200 and Nickel 201 may show very similar corrosion resistance. However, when corrosion and elevated temperature occur together, Nickel 201 is often preferred because of its low-carbon stability.
Nickel 201 is not usually selected for strong oxidizing acids, severe chloride pitting conditions, or high-temperature oxidation environments. Since it does not contain chromium or molybdenum as major alloying elements, its corrosion resistance range is different from stainless steel, Inconel, or Hastelloy alloys.
| Environment | Nickel 201 Round Bar Performance | Selection Note |
|---|---|---|
| Caustic Alkali | Excellent | One of the main reasons to use Nickel 201 |
| High-Temperature Alkali | Very good when properly selected | Low carbon content is important |
| Neutral Salts | Good in many conditions | Check impurities, temperature, and concentration |
| Reducing Media | Good | Depends on actual chemistry |
| Strong Oxidizing Acids | Limited | Other alloys may be better |
| Severe Chloride Pitting | Limited compared with molybdenum-bearing alloys | Consider other nickel alloys if pitting risk is high |
Nickel 201 round bar is widely used in caustic alkali service because commercially pure nickel has excellent resistance to caustic soda and related alkaline environments. The chemical composition of Nickel 201 makes it especially useful when caustic alkali resistance is needed at elevated temperature.
The high nickel content gives Nickel 201 strong resistance to caustic alkalis. In many alkali systems, stainless steel may not provide the same level of stability, especially at higher concentrations or elevated temperatures. Nickel 201 is selected when pure nickel behavior is needed together with low carbon control.
Nickel 201 round bar may be machined into rods, fasteners, supports, shafts, fixtures, valve parts, and other components for hot alkali handling equipment. In caustic evaporators and chemical processing units, low carbon content helps improve reliability when parts are exposed to elevated temperature for long periods.
For caustic alkali applications, buyers should confirm alkali concentration, temperature, pressure, flow condition, impurities, bar size, delivery condition, and required standard. Even though Nickel 201 is a strong material for caustic alkali service, final material selection should always match real working conditions.
| Application Condition | Nickel 201 Composition Benefit | Practical Use |
|---|---|---|
| Caustic Soda Service | High nickel content | Good resistance to alkali corrosion |
| Hot Alkali Equipment | Low carbon content | Better elevated-temperature reliability |
| Caustic Evaporator Parts | Pure nickel base and carbon control | Useful for rods, supports, fasteners, and fittings |
| Long-Term High-Temperature Service | Reduced graphitization risk | Preferred over Nickel 200 in many cases |
Nickel 201 and Nickel 200 have very similar chemical compositions because both are commercially pure nickel materials. The main difference is carbon content. Nickel 201 has a much lower carbon limit, which makes it more suitable for elevated-temperature use.
| Element | Nickel 200 | Nickel 201 | Difference Meaning |
|---|---|---|---|
| Nickel + Cobalt | 99.0% min | 99.0% min | Both are commercially pure nickel grades |
| Carbon | 0.15% max | 0.02% max | Nickel 201 is the low-carbon grade |
| Copper | 0.25% max | 0.25% max | Similar residual limit |
| Iron | 0.40% max | 0.40% max | Similar residual limit |
| Manganese | 0.35% max | 0.35% max | Similar residual limit |
| Silicon | 0.35% max | 0.35% max | Similar residual limit |
| Sulfur | 0.01% max | 0.01% max | Similar residual limit |
The practical difference is not that Nickel 201 has much more nickel than Nickel 200. Both have very high nickel content. The real difference is that Nickel 201 controls carbon more strictly. This makes Nickel 201 a better choice when the component will operate at elevated temperature or when the specification requires low-carbon pure nickel.
Nickel 200 should not replace Nickel 201 if the drawing, standard, or service condition requires UNS N02201. For normal-temperature applications, Nickel 200 and Nickel 201 may both be acceptable if the specification allows. For elevated-temperature service, Nickel 201 should normally be selected.
The chemical composition of Nickel 201 round bar affects its mechanical properties, but delivery condition also plays a major role. Nickel 201 has good ductility, good toughness, and useful strength. It is not designed as a high-strength nickel alloy. Its main value is pure nickel corrosion resistance, low carbon content, conductivity, and processability.
The high nickel content gives Nickel 201 good ductility and formability. This makes it suitable for machining, bending, forming, welding, and fabrication when the correct bar condition is selected.
The low carbon content helps improve reliability in elevated-temperature applications. It does not make Nickel 201 a precipitation-hardened or high-strength alloy, but it helps reduce carbon-related risks in long-term high-temperature service.
Nickel 201 round bar may be supplied in hot rolled, forged, annealed, cold drawn, peeled, or ground condition. Cold drawn bars usually have higher strength and better dimensional accuracy, while annealed bars usually provide better ductility. Buyers should check the MTC for actual tensile strength, yield strength, elongation, hardness, and delivery condition.
| Composition / Condition Factor | Effect on Mechanical Properties | Practical Meaning |
|---|---|---|
| High Nickel Content | Good ductility and toughness | Useful for forming, machining, and corrosion-resistant parts |
| Low Carbon Content | Improves elevated-temperature reliability | Important for high-temperature pure nickel service |
| Cold Drawing | Increases strength and improves tolerance | Useful for precision rods, pins, and small components |
| Annealing | Improves ductility | Useful for forming, welding, and fabrication |
| Forging | Suitable for large sections and heavy-duty components | Used for large diameter bars or special machined parts |
Nickel 201 round bar is usually supplied according to recognized standards that define chemical composition, mechanical properties, product form, testing, tolerance, marking, and certification requirements. Buyers should clearly state the required standard when placing an inquiry or purchase order.
| Standard / Designation | Meaning for Nickel 201 Round Bar |
|---|---|
| UNS N02201 | Unified designation for Nickel 201 |
| ASTM B160 | Common specification for nickel rod and bar products |
| ASME SB-160 | ASME version often used for engineering and pressure-related projects |
| W.Nr. 2.4068 | European material number reference for Nickel 201 |
| Customer Specification | May include special testing, tolerance, surface, or document requirements |
Different projects may require different standards or additional test items. If the buyer only writes “Nickel 201 round bar,” the supplier may still need to confirm whether ASTM B160, ASME SB-160, EN standard, or a customer specification is required. Standards affect not only chemical composition but also mechanical test requirements, tolerance, inspection, and certificate format.
A clear inquiry should include grade, UNS number, standard, diameter, length, quantity, surface condition, tolerance, delivery condition, testing requirement, certificate requirement, and final application if possible. For example: Nickel 201 round bar, UNS N02201, ASTM B160, diameter 20 mm, length 3000 mm, peeled surface, with MTC.
MTC means Material Test Certificate. For Nickel 201 round bar, the MTC is one of the most important documents because it proves the actual chemical composition and material traceability. Buyers should review the MTC before accepting the material, especially for high-temperature or chemical processing applications.
The MTC should clearly show Nickel 201, Alloy 201, or UNS N02201. If the document shows UNS N02200, it means Nickel 200, not Nickel 201. This difference is important because the carbon limits are different.
The carbon value is the most important composition item in Nickel 201. It should not exceed the maximum limit required by the standard, commonly 0.02% maximum. If the carbon value is higher, the material may not meet Nickel 201 requirements.
The MTC should show nickel plus cobalt meeting the minimum requirement, commonly 99.0% minimum. This confirms the material belongs to the commercially pure nickel family.
Copper, iron, manganese, silicon, and sulfur should all be within the allowed maximum limits. Even though these are minor elements, they are important for standard compliance and material quality.
The heat number on the MTC should match the heat number on the bar label, product marking, and packing list. Heat number traceability proves that the certificate belongs to the supplied material.
The MTC should mention the applicable standard, such as ASTM B160 or ASME SB-160. It should also include mechanical properties if required, such as tensile strength, yield strength, elongation, and hardness. For critical applications, additional test reports such as PMI, ultrasonic testing, or third-party inspection may be required.
| MTC Check Item | What to Confirm | Why It Matters |
|---|---|---|
| Grade | Nickel 201 / Alloy 201 | Confirms material name |
| UNS Number | UNS N02201 | Confirms exact alloy designation |
| Carbon | 0.02% max or standard requirement | Key low-carbon requirement |
| Nickel + Cobalt | 99.0% min or standard requirement | Confirms commercially pure nickel composition |
| Residual Elements | Cu, Fe, Mn, Si, S within limits | Confirms composition compliance |
| Heat Number | Same on MTC, label, and bar marking | Provides material traceability |
| Standard | ASTM B160, ASME SB-160, or required specification | Defines acceptance rules |
PMI testing can help verify major elements such as nickel and some residual metals. It is useful for incoming inspection and material mix-up prevention. However, PMI may not accurately confirm very light elements such as carbon or sulfur. For Nickel 201, carbon is the key difference from Nickel 200, so buyers should rely on the MTC or laboratory chemical analysis to confirm carbon content.
What is the composition of Nickel 201?
Nickel 201 is a low-carbon commercially pure nickel alloy. Its composition usually includes nickel plus cobalt at 99.0% minimum, carbon at 0.02% maximum, copper at 0.25% maximum, iron at 0.40% maximum, manganese at 0.35% maximum, silicon at 0.35% maximum, and sulfur at 0.01% maximum. The exact values should be checked according to the required standard and the material test certificate.
What is the difference between Nickel 200 and Nickel 201 composition?
The main composition difference between Nickel 200 and Nickel 201 is carbon content. Nickel 200 usually allows carbon up to 0.15% maximum, while Nickel 201 limits carbon to about 0.02% maximum. Both grades have nickel plus cobalt at 99.0% minimum, but Nickel 201 is the low-carbon version and is preferred for elevated-temperature service above about 315°C.
Why is Nickel 201 used for high temperature?
Nickel 201 is used for high-temperature pure nickel applications because its low carbon content helps reduce graphitization and carbon-related embrittlement risk. This makes it more suitable than Nickel 200 for service above about 315°C, especially in high-temperature caustic alkali equipment, chemical processing parts, rods, fasteners, and other components requiring low-carbon commercially pure nickel.
